NOTE - The following mod was originally submitted to the
Tech Rally group on
Yahoo by Ray Wilkes in August 2004.
PDF (242KB)
Super Freezer for FD and QD
Although the smaller Norcold 3163 refrigerator in the FD and
QD do not have freezer compartments, with a little duct tape and Styrofoam, you
can make a "Super Freezer" that will freeze two full size trays of ice cubes over
night.
APPROX. MODIFICATION TIME: .5 hours
PARTS LIST:
| Styrofoam |
<$1 |
| Duct tape |
<$1 |
| Wax paper |
<$1 |
| Two full-sized ice trays not TO exceed 4 3/8" wide x 10 3/4"
long |
<$1 |
| APPROX. TOTAL COST OF PARTS |
≈ <$5 |
INSTRUCTIONS:
NOTE: A full-size template for cutting parts is available from R. Wilkes.

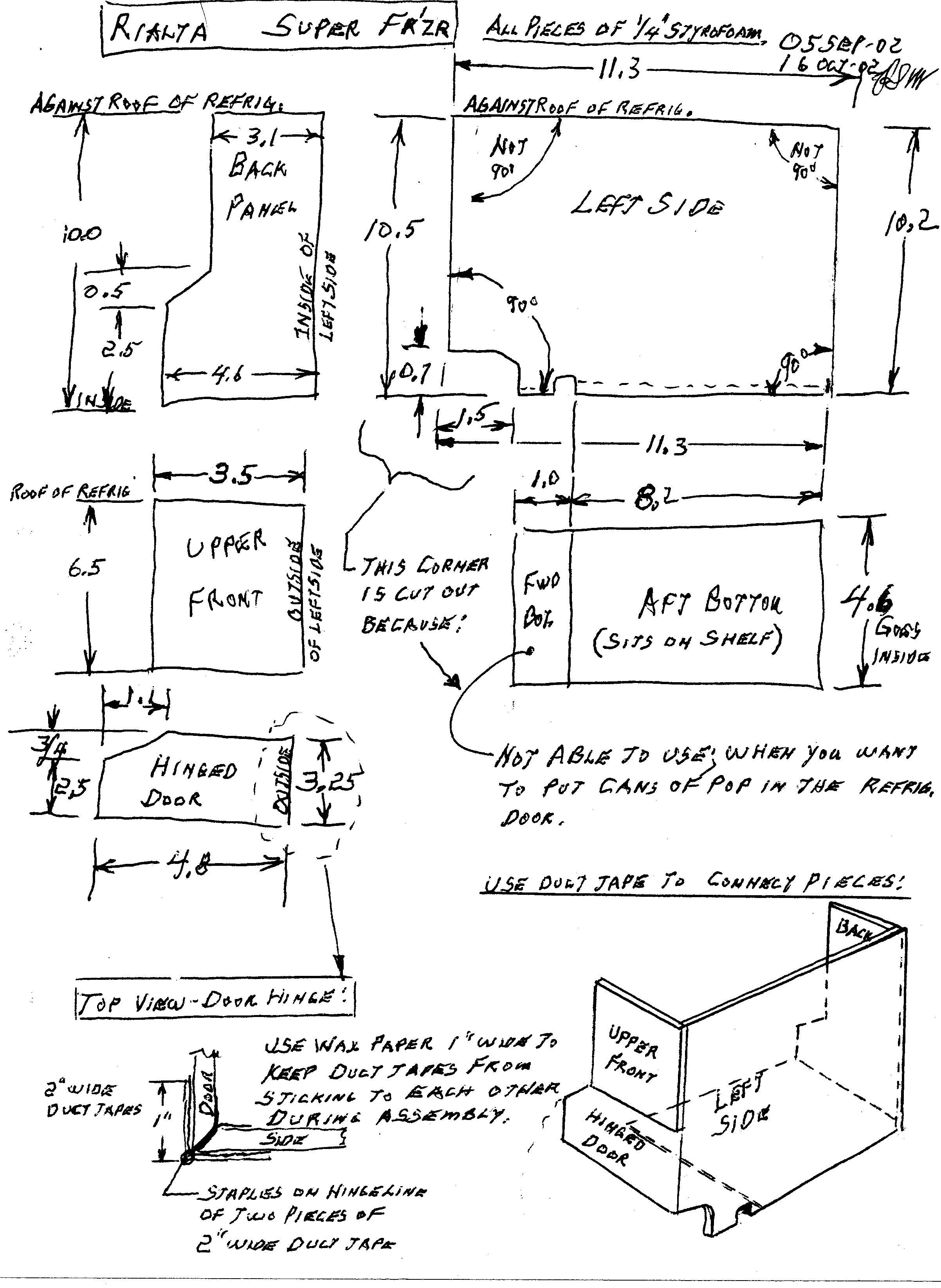

Cut and prepare Styrofoam and duct tape according to diagram on next page.
|
Click on image to view full size
|
 |

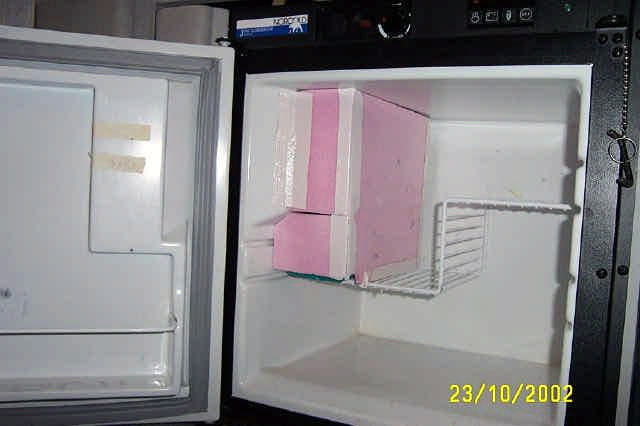

Freezer with door closed. Note: Styrofoam panels extend to
the ceiling of the refrigerator and enclose forward cooling fins.

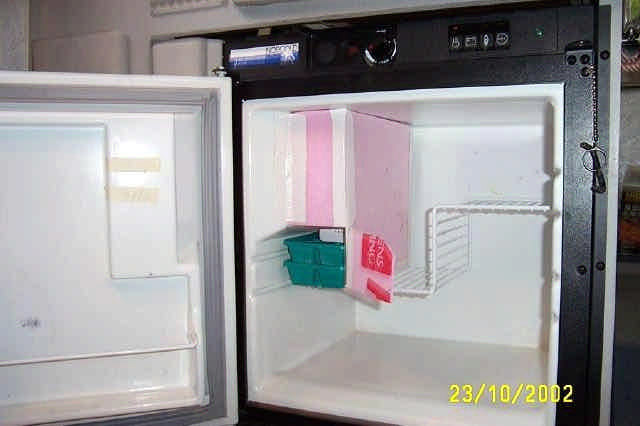

Freezer with door open. Two full-sized ice trays (4 1/4" x
10 3/4" with 14 cavities) fit nicely and freeze ice cubes overnight. Note: Although
not obvious, the side panel does not go to the back wall, but instead, an aft
panel fits between the aft fins of the cooling section, so the temperature sensor
remains in the refrigerator compartment and not in the "Super Freezer" compartment.
Also, the lower forward part is trimmed so as not to interfere with pop cans in
the refrigerator door.
